Overstock 25kW wind turbines

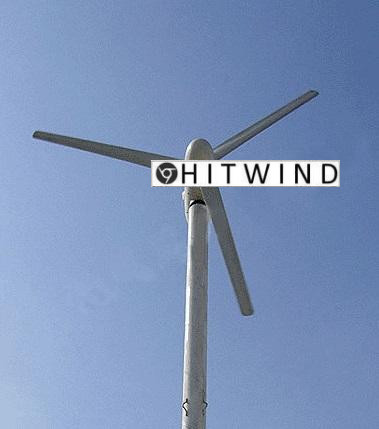

West Wind – Pioneer 25kW for sale
Brand new with a 5-year warranty
Technical Specifications
-
Upwind Active Yaw System
-
Generator
-
Rated Power: 25Kw
-
Type: 3 phase, 60 Hz synchronous 240v or 480v AC
-
RPM: 1800 (3 phase)
-
Optional: 240v single phase
-
Optional: 50 Hz (voltage set per country standard)
Mono-pole Tower
-
Construction material; steel plate
-
Height 80 ft (standard), (Optional) 100ft, 120ft, 150ft
-
Hub height: 84 ft
-
White powder-coated
-
Nacelle access: exterior tower ladder with Cat Walk
-
Base Diameter: 54 inches
-
Control Panel located outside bottom of the tower
Rotor
-
Orientation: Upwind
-
16 foot
-
3 blades, fixed pitch
-
33.5 ft diameter
-
RPM 100
-
Noiseless than 68 decibels at the tower
-
Blades Fiberglass
-
Weight – approx. 75 lbs each
-
Area swept: 75 Square meters
Component Weights
-
Nacelle, rotor and blades 3,450 lbs
-
Tower (2 sections): 7,100
Operational
-
Cut in speed: 8 mph
-
Cut off speed: None (stall regulated blades)
-
Survival wind speed: 120 mph
Other
-
Touch screen control panel
-
User-configurable control parameters
-
Soft Start for generator
-
Ultra Sonic Wind Vane / Anemometer
-
Slip-ring
-
Fibreglass nacelle cover/nose cone
Options
-
Internet Accessibility
-
Heated wind vane
-
Transmission heater
-
Noise dampening foam installed
-
Single-phase converter
-
Safety Features
-
Induction generator anti-Islanding
-
Fail-safe hydraulic disk brake
-
The blade over speed centrifugal actuated tip brakes
-
Thermal protection on the generator
-
Thermal protection on yaw controls
-
Vibration sensor for fault shutdown
-
Voltage and Frequency protection
- Construction material; steel plate
- Height 80 ft (standard), (Optional) 100ft, 120ft, 150ft
- Hub height: 84 ft
- White powder-coated
- Nacelle access: exterior tower ladder with Cat Walk
- Base Diameter: 54 inches
- Control Panel located outside bottom of the tower
Rotor
-
Orientation: Upwind
-
16 foot
-
3 blades, fixed pitch
-
33.5 ft diameter
-
RPM 100
-
Noiseless than 68 decibels at the tower
-
Blades Fiberglass
-
Weight – approx. 75 lbs each
-
Area swept: 75 Square meters
Component Weights
-
Nacelle, rotor and blades 3,450 lbs
-
Tower (2 sections): 7,100
Operational
-
Cut in speed: 8 mph
-
Cut off speed: None (stall regulated blades)
-
Survival wind speed: 120 mph
Other
-
Touch screen control panel
-
User-configurable control parameters
-
Soft Start for generator
-
Ultra Sonic Wind Vane / Anemometer
-
Slip-ring
-
Fibreglass nacelle cover/nose cone
Options
-
Internet Accessibility
-
Heated wind vane
-
Transmission heater
-
Noise dampening foam installed
-
Single-phase converter
-
Safety Features
-
Induction generator anti-Islanding
-
Fail-safe hydraulic disk brake
-
The blade over speed centrifugal actuated tip brakes
-
Thermal protection on the generator
-
Thermal protection on yaw controls
-
Vibration sensor for fault shutdown
-
Voltage and Frequency protection
- Nacelle, rotor and blades 3,450 lbs
- Tower (2 sections): 7,100
Operational
-
Cut in speed: 8 mph
-
Cut off speed: None (stall regulated blades)
-
Survival wind speed: 120 mph
Other
-
Touch screen control panel
-
User-configurable control parameters
-
Soft Start for generator
-
Ultra Sonic Wind Vane / Anemometer
-
Slip-ring
-
Fibreglass nacelle cover/nose cone
Options
-
Internet Accessibility
-
Heated wind vane
-
Transmission heater
-
Noise dampening foam installed
-
Single-phase converter
-
Safety Features
-
Induction generator anti-Islanding
-
Fail-safe hydraulic disk brake
-
The blade over speed centrifugal actuated tip brakes
-
Thermal protection on the generator
-
Thermal protection on yaw controls
-
Vibration sensor for fault shutdown
-
Voltage and Frequency protection
- Touch screen control panel
- User-configurable control parameters
- Soft Start for generator
- Ultra Sonic Wind Vane / Anemometer
- Slip-ring
- Fibreglass nacelle cover/nose cone
Options
-
Internet Accessibility
-
Heated wind vane
-
Transmission heater
-
Noise dampening foam installed
-
Single-phase converter
-
Safety Features
-
Induction generator anti-Islanding
-
Fail-safe hydraulic disk brake
-
The blade over speed centrifugal actuated tip brakes
-
Thermal protection on the generator
-
Thermal protection on yaw controls
-
Vibration sensor for fault shutdown
-
Voltage and Frequency protection
PLEASE NOTE
- Inspection can be arranged after signing a Letter Of Intent
- Tire kickers and time wasters may not apply!
