TURBOWINDS T400 - 400kW & 250kW

£83,600

Enquiries
SKU: HIT20160413n-GB Categories: , Tag:

Two Fully Re-Built - 34m Rotor

TurboWinds T400-34 (250kW - 225kW - 200kW de-rated)

Inclusive 2-year Warranty - Immediately Available

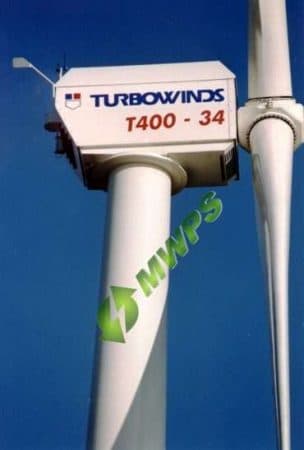

TurboWinds-T400

TurboWinds T400/250-34

  • 400kW or 250kW De-Rated
  • 30m or 40m Tower
  • 34m Rotor
  • Fully Rebuilt in 2015
  • Including 2 years Warranty
  • 5 year extended warranty optional

TURBOWINDS T400 - 400kW & 250kW

TURBOWINDS T400 - 400kW & 250kW

These immaculately 85% re-built in 2015 TurboWinds T400 - Dual Speed wind turbines come with a massive 34m rotor diameter are available on 30m or 40 monopole steel towers. Purchase price includes 2-year standard manufacturer warranty with a 5 year extended warranty options available. Option to supply as 250/225kW or 200kW de-rated version at no extra cost immediately available for delivery makes these great performing turbines a preferred choice for any developer in the UK, England, Scotland, Wales or in Northern Ireland currently seeking 'As New' wind turbines with full warranty in this class and trying to meet the fast-approaching FIT and ROC closure deadline. New turbines directly from manufacturers cannot and will not be delivered in time.

Take delivery of these 34m rotors - 40m tower 250kW/225kW or 200kW de-rated (or as is 400kW) and fully warranted turbines within only weeks of signature of SA. Call now to avoid disappointment.

TECHNICAL SPECIFICATION

Turbine type: T400-34 Dual Speed

  • Rated Power: 400 kW or 250kW De-Rated
  • Rotor Diameter: 34 m
  • Tower Heights: 30 or 40  m
  • Number of blades: 3
  • Control: Active stall
  • Pitch Actuation: Hydraulic Hub

Transmission: (Gearbox)

  • Make: Winergy
  • Type: 3-stage parallel

Brake:

  • Type: Hydraulic disk brake
  • Position: High-speed shaft

Generator:

  • Make: ABB
  • Type: Induction Dual generator
  • Voltage: 690 Volt
  • Rotation speed: 1000 / 1500 rpm

Nacelle

  • Frame: Welded steel structure
  • Housing: Steel or fibreglass

Tower:

  • 30m or 40m
  • Material: Welded steel
  • Type: Polygonal / tapered
  • Conservation: Galvanisation / metalisation /paint

Performance:

  • Rated power: 400 kW
  • Rated windspeed: 13,5 m/s
  • Cut-in: 3 m/s Cut-out: 25 m/s
  • Survival: 60 m/s

Weights:

  • Nacelle including rotor:  18 ton
  • Tower: 16 / 24 / 36 ton
  • Total turbine: 34 / 42 / 54 ton

 Rebuilt Works:

  • Gearbox: refurbished
  • Generator: new
  • Blades: refurbished
  • Bearings: new
  • Mechanicals: new
  • Yaw motor: new
  • Electricals: new
  • Controller: new
  • Scada System: new
  • All cables + capacitor banks: new
  • Hydraulics: the majority of new
