WINDMATIC 17S – Refurbished

• • Cut-in wind speed 3.5 m/s
• • Wind speed for max. power 15 m/s
• • Cut-out wind speed 25 m/s
• • Design wind speed 50 m/s
• • Max. electric power 95kW

TURBINE

• • Type 3 blades, stall regulated
  • Diameter 17m
  • Direction of rotation Counter clockwise
  • RPM 41-42/58-59 rpm
  • Mass (inc.1 hub) 1240kg

BLADES

• • Beam material reinforced fiberglass
  • Length 8,20m
  • Rotor Diameter 16m

AERODYNAMIC BRAKES

• Type Spoilers
• Releasing Centrifugally

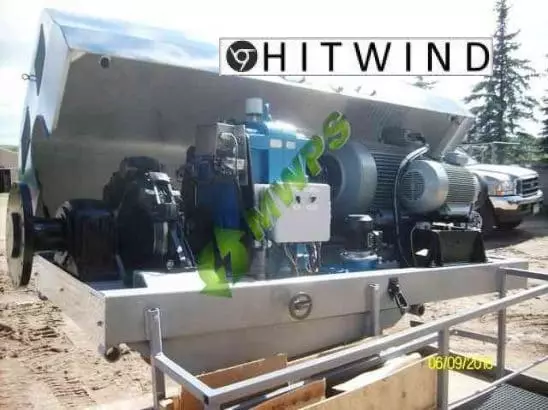

NACELLE

• Cover material Aluminium
• Chassis material Galvanised Steel
• Mass (excl. turbine) 4100kg

OPERATION BRAKE

• Type Disc Brake
• Location Turbine Shaft
• Operation Hydraulic

GEARBOX

• • Type Oil lubricated, hollow shaft

GENERATORS

• Type Asynchronous with squirrel cage

YAWING SYSTEM

• Type Yaw gear wheel

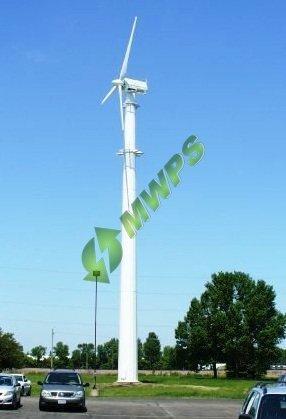

Following tower options available:

• 100′ Lattice Tower
• 120′ Lattice Tower
• 140′ Lattice Tower
• 100′ Monopole Tower
• 115′ Monopole Tower

Please ask for quotation of above tower heights.
